Exposing an Instance to the Internet ​

In this tutorial, you will learn how to expose a Caido instance to the internet.

NOTE

Ensure to replace user with your username, example.com with your domain, user@example.com with your email address, and account for any currently running processes by changing the ports.

Nginx Configuration ​

  1. To logically separate the internet-exposed Caido instance from your existing setup, create a new subdomain by adding a A record for caido.example.com for the IP address of your server.

  2. SSH into your server.

  3. Create a new sites-available file and use the proxy_pass directive to route traffic to Caido: sudo nano /etc/nginx/sites-available/caido.example.com

txt
server {
    server_name caido.example.com;

    location / {
        proxy_pass http://127.0.0.1:8081;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }

    listen 80;
    listen [::]:80;
}
  1. Make the site available, test the configuration, and reload the web server:
bash
sudo ln -s /etc/nginx/sites-available/caido.example.com /etc/nginx/sites-enabled/
bash
sudo nginx -t
bash
sudo systemctl reload nginx
  1. Obtain a SSL/TLS certificate:
bash
sudo certbot --nginx -d caido.example.com
  1. Launch the Caido CLI:
bash
caido-cli --ui-listen 0.0.0.0:8081 --proxy-listen 0.0.0.0:8082 --ui-domain caido.example.com --debug --no-renderer-sandbox --no-open

Docker ​

The following Docker compose file runs two services: the Caido CLI and Traefik.

NOTE

If Nginx/Apache is running, kill it with: sudo systemctl stop nginx/sudo systemctl stop apache

  1. Install Docker with the Docker Compose plugin.
  2. SSH into your server.
  3. Create a docker-compose.yml file with the following content:
txt
services:
  caido:
    image: caido/caido:latest
    container_name: caido
    ports:
      - "127.0.0.1:8082:8082"   # Proxy port
    volumes:
      - /home/user/caido/data/:/home/caido/.local/share/caido
    command: >
      caido-cli
      --no-renderer-sandbox
      --debug
      --no-open
      --ui-listen 0.0.0.0:8081
      --ui-domain example.com
      --proxy-listen 0.0.0.0:8082
    #--allow-guests
    restart: unless-stopped
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.caido.rule=Host(`example.com`)"
      - "traefik.http.routers.caido.entrypoints=websecure"
      - "traefik.http.routers.caido.tls.certresolver=letsencrypt"
      - "traefik.http.services.caido.loadbalancer.server.port=8081"

  traefik:
    image: traefik:latest
    container_name: traefik
    restart: unless-stopped
    ports:
      - "80:80"
      - "443:443"
    command:
      - "--providers.docker=true"
      - "--providers.docker.exposedbydefault=false"
      - "--entrypoints.web.address=:80"
      - "--entrypoints.websecure.address=:443"

      # Redirect HTTP → HTTPS
      - "--entrypoints.web.http.redirections.entrypoint.to=websecure"
      - "--entrypoints.web.http.redirections.entrypoint.scheme=https"

      # Let's Encrypt - HTTP challenge (works with standard ports 80/443)
      - "--certificatesresolvers.letsencrypt.acme.httpchallenge=true"
      - "--certificatesresolvers.letsencrypt.acme.httpchallenge.entrypoint=web"
      - "--certificatesresolvers.letsencrypt.acme.email=user@example.com"
      - "--certificatesresolvers.letsencrypt.acme.storage=/letsencrypt/acme.json"

    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - ./letsencrypt:/letsencrypt
  1. Create a data storage location for Caido:
bash
mkdir -p /home/user/caido/data
  1. Since the container runs as uid=996(caido) gid=996(caido) groups=996(caido), set ownership of the host directory to match:
bash
sudo chown -R 996:996 /home/user/caido/data
  1. Make the directory writable:
bash
sudo chmod 755 /home/user/caido/data

Accessing Caido ​

Once Caido is running, access the instance at the configured domain and authenticate into your account.

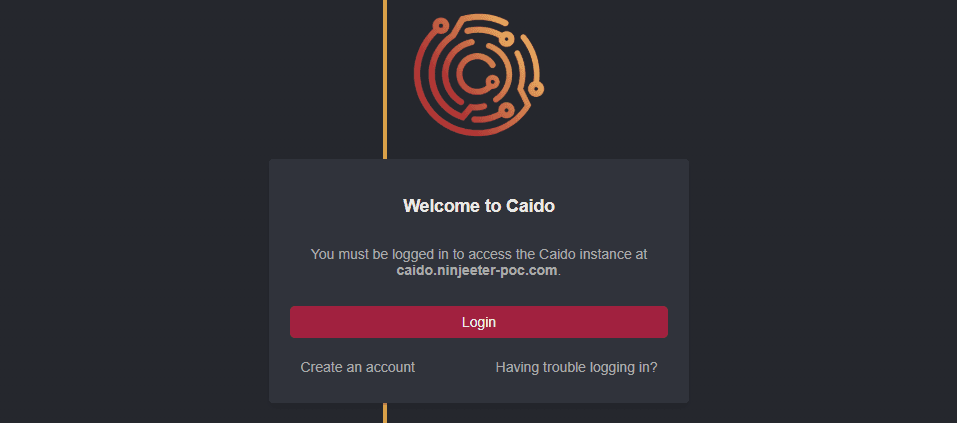

Login page.
